Autonomous Humanoid Exploration: Visual SLAM and Navigation on the Unitree G1

Overview

This project enables the Unitree G1 29-DOF humanoid robot to autonomously explore and navigate indoor environments. The G1 runs its own control stack over CycloneDDS, which is incompatible with the standard FastDDS middleware used by most ROS 2 packages. A major part of the work was building a reliable DDS bridge to bring the robot’s sensor data into a separate ROS 2 domain where RTABMap and Nav2 could run. The robot uses an onboard Intel RealSense D435 camera for visual SLAM and depth-based obstacle avoidance — it has no lidar.

The main challenges in this project are:

• Bridging two incompatible DDS implementations (CycloneDDS ↔ FastDDS) across ROS 2 domains.
• Running visual SLAM on a walking humanoid with no lidar sensor.
• Adapting the Nav2 stack, which is typically designed for wheeled robots, for a humanoid platform.

System Components

Architecture

The system runs across two ROS 2 DDS domains:

• Domain 0 (Robot): The G1 publishes its low-level state and camera streams over CycloneDDS.
• Domain 1 (Navigation): RTABMap, Nav2, and all planning/control nodes run here over FastDDS.

A DDS domain bridge relays key topics between the two domains — joint_states, tf, tf_static, and cmd_vel. On the robot side, a custom jsPublisher node converts the Unitree-specific LowState message into standard ROS 2 JointState messages with all 29 joints, so the robot can be visualized and tracked in RViz.

SLAM Pipeline

The D435 camera does not have a lidar, so all mapping is done visually using RTABMap.

Infrared Stereo Mode

• The D435’s IR emitter is disabled, and the left and right infrared cameras are used as a stereo pair for depth estimation.
• This avoids synchronization issues that occur when using the RGB stream alongside active depth.

Visual Odometry

• RTABMap’s RGBD odometry node fuses the infrared images, depth stream, and IMU data to estimate the robot’s pose.
• The IMU data from the D435 is first filtered through a Madgwick filter node before being fed to the odometry.
• wait_imu_to_init is enabled so the odometry waits for valid IMU data before starting.

Mapping and Localization

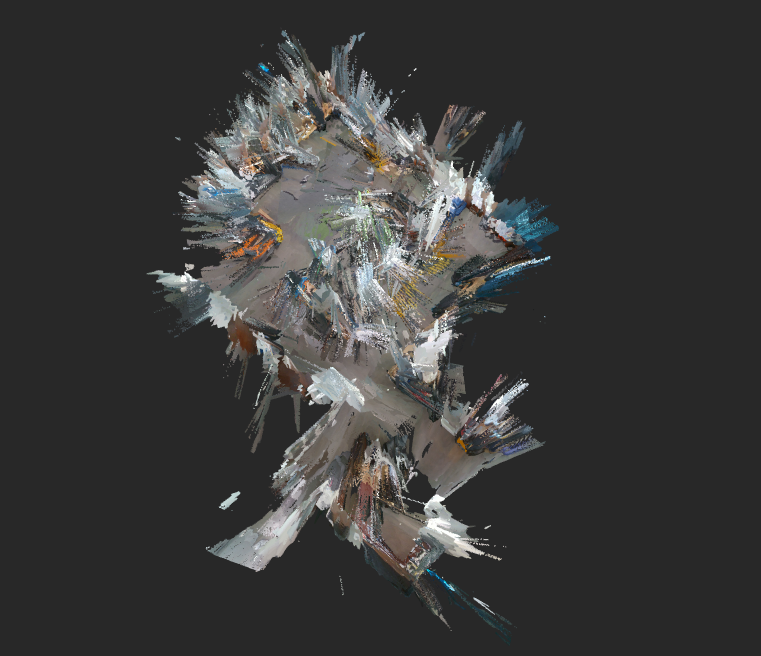

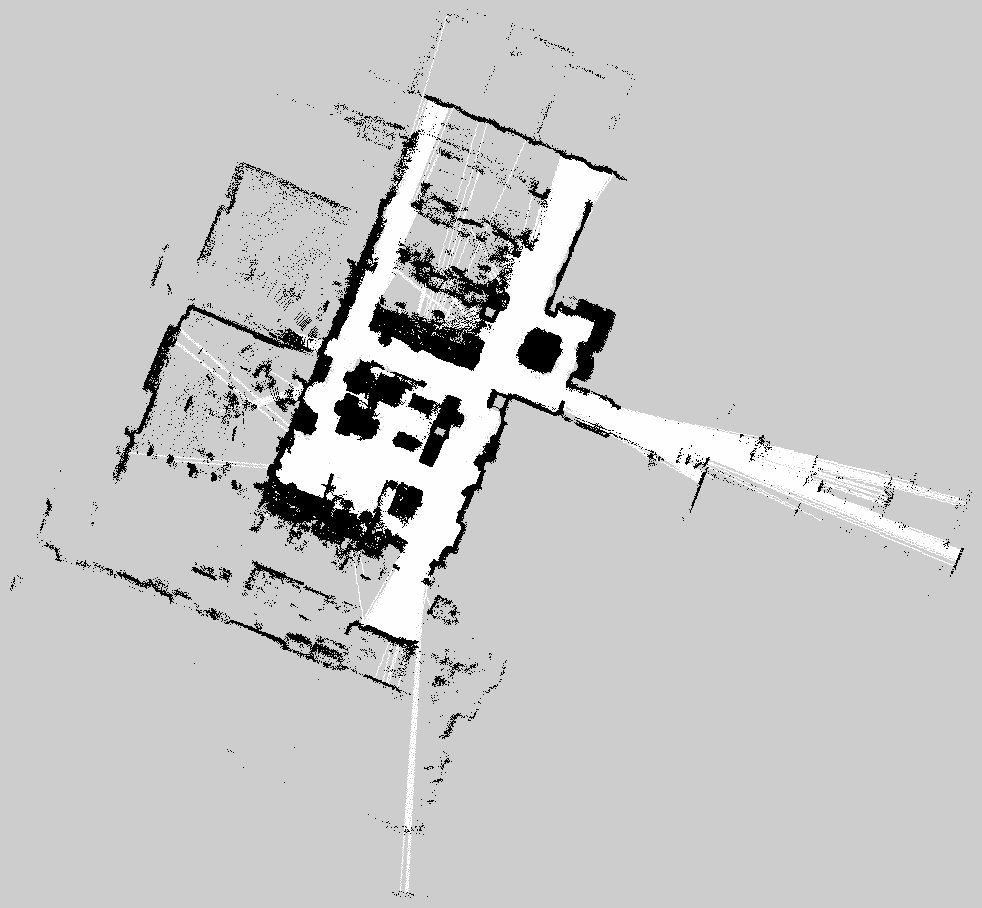

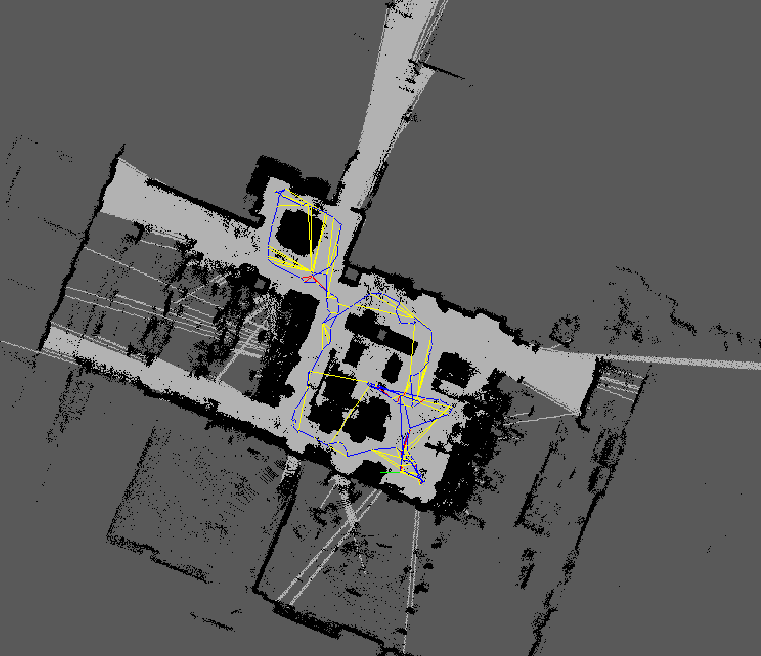

• RTABMap builds an occupancy grid map in real time as the robot walks around.
• It publishes the map → odom transform, so Nav2 does not need to run its own localization (AMCL is disabled).
• For repeat visits, the system can switch to localization-only mode using a previously saved map database.

Depth to LaserScan

• Since Nav2’s costmaps and collision monitor expect a /scan topic, the depthimage_to_laserscan node converts the depth image into a 2D LaserScan message.
• Scan range is set to 0.2m – 4.0m.

Nav2 Integration

Getting Nav2 to work on a humanoid required some adaptation since the stack is built with wheeled robots in mind.

Motion Model

• The G1’s walking is abstracted as a differential drive model for Nav2’s planners and controllers.
• Velocity commands (cmd_vel) are sent as TwistStamped messages and bridged back to Domain 0 for execution.

Path Planning

• Global planner: NavFn with Dijkstra’s algorithm.
• Local controller: MPPI (Model Predictive Path Integral) — samples 2000 candidate trajectories over a 2.8-second horizon at 20 Hz.
• The MPPI controller uses multiple cost critics for path following, collision avoidance, goal reaching, and preferring forward motion.

Costmaps

• Local costmap: 3m × 3m rolling window around the robot, updated at 5 Hz from the laser scan, with a voxel layer for 3D obstacle detection.
• Global costmap: Full map with static and obstacle layers, updated at 1 Hz.
• Both use an inflation radius of 0.3m around the robot footprint (~0.22m radius).

Collision Monitor

• A collision monitor node watches the /scan topic and reduces velocity when the robot approaches obstacles.
• If the /scan topic goes missing (e.g., camera disconnect), the monitor blocks all velocity commands as a safety measure.

Velocity Pipeline

The full command chain: controller_server → cmd_vel_nav → velocity_smoother → cmd_vel_smoothed → collision_monitor → cmd_vel

Locomotion and Teleoperation

• The G1’s high-level control API accepts velocity commands to walk in any direction.
• For manual control, velocity commands can be sent from a joystick or keyboard in Domain 1 and are bridged to the robot in Domain 0.
• The same cmd_vel interface is shared between teleoperation and autonomous navigation, making it easy to switch between the two.

Key Challenges Solved

• Bridged CycloneDDS and FastDDS across two ROS 2 domains with proper QoS handling for tf_static (transient local durability).
• Got RTABMap visual SLAM working on a walking humanoid using infrared stereo to avoid RGB sync issues.
• Converted depth images to laser scans so Nav2’s costmaps and collision monitor could function without a lidar.
• Tuned Nav2’s MPPI controller for humanoid walking speeds and dynamics.
• Built a joint state bridge that converts Unitree’s proprietary LowState messages into standard ROS 2 JointState for all 29 joints.

Ongoing Work

• Semantic SLAM: Extending the current mapping pipeline to include semantic labels in the map, so the robot can reason about what objects are in the environment rather than just treating everything as occupied or free space.
• NaVILA Integration: Implementing the NaVILA Vision-Language-Action model for navigation and comparing it against the conventional Nav2 stack. The goal is to evaluate how a VLA-based approach — where a single model takes in camera images and language instructions to directly output actions — stacks up against the traditional perception → planning → control pipeline in terms of generalization and robustness.

Acknowledgements

This project is being developed as a Winter independent project at Northwestern University as part of the MS in Robotics program.
